AI-Powered Manufacturing Engine
North 41 builds Lithic AI — an autonomous pipeline that turns a plain-English description into verified STEP geometry, G-code toolpaths, a manufacturability report, and a costed quote. It is how engineers design and quote precision parts in minutes instead of days.
Natural Language → Verified CAD
Describe a part in plain English. Lithic plans it, builds parametric STEP geometry, then checks every dimension and feature against your intent before it moves on. Typical end-to-end time: 3–6 minutes for a complex multi-feature part.
Where it is strong today: across core prismatic families — spur gears, pneumatic/hydraulic manifolds, bearing & pillow-block housings, heat sinks, keyed shafts, enclosures, brackets, fixture plates and bolt-circle plates — Lithic builds verified, machine-ready geometry to spec (the parts shown below are real pipeline output). More complex turned and threaded work — multi-lead threads, swept passages, freeform profiles — is still in active development and is routed to a human engineer rather than shipped. Backed by 1,340+ automated tests.
It Tells You What It Can't Do
Lithic works within a deterministic 2.5–3 axis machining envelope. When a request falls outside it — a freeform turbine blade, a 5-axis impeller, an organic lattice — it routes the job to a human engineer instead of shipping a wrong model. No fabricated geometry, ever.
Every part also passes dimensional verification, manufacturing-rule governance, FEA, and visual QA — with automatic redesign loops — before any tool moves.
Real Geometry Lithic Generates
Every image below is an actual render of STEP geometry our pipeline generated from a one-line description — modeled on real Japanese and German precision components, from Swiss-turned micro parts to fixture and automation hardware. These are AI-generated CAD models, not parts North 41 has machined — but each carries correct bores, clamp slits, cross-drilled galleries, gear teeth and seat bores, ready for CAM.
Micro Spur Gear
Involute teeth + integral hub & reamed bore. Module 0.5 · 22T · Ø12 mm. S45C carbon steel.
Rigid Shaft Coupling
One-piece clamp coupling: twin Ø5 bores, dual axial slits + cross-drilled M2.5 screws. Ø16 × 25 mm. A2017 aluminum.
Clamping Shaft Collar
Turned ring, Ø6 bore, radial clamp slit + tapped M3 screw. Ø15 × 8 mm. SUS303 stainless.
Spring-Plunger Body
Screw-in body: M6×1 thread, ball-seat counterbore + rear hex socket. Ø6 × 14 mm. 1.4305 stainless.

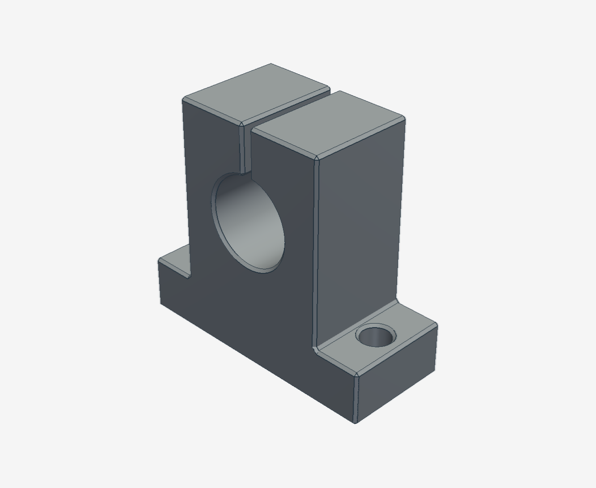

Linear Shaft Support
SK-type: base + boss with a horizontal clamp bore, axial slit & base mount holes. 48 × 44 mm. A5052 aluminum.

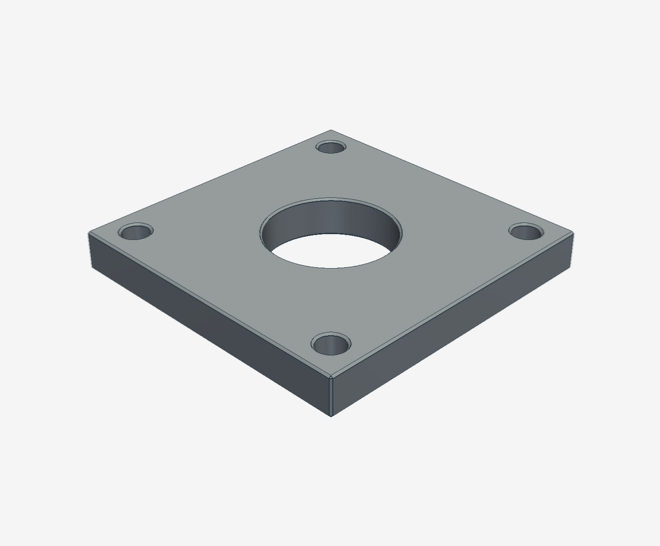

Cylinder Mounting Flange
ISO 15552 front flange: central cylinder bore + 4 corner mount holes. 80 × 80 × 10 mm. Die-cast aluminum.

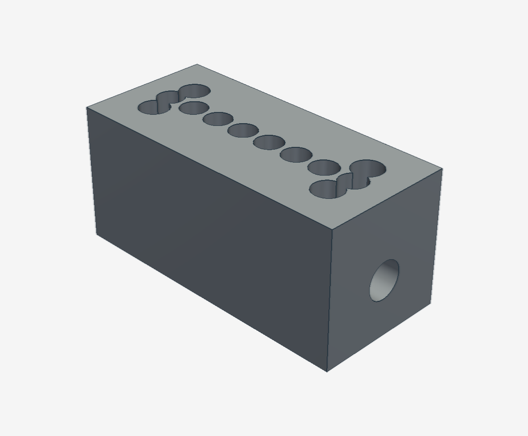

Pneumatic Manifold Block
Cross-drilled main gallery + port row on pitch + side feed. 55 × 25 × 25 mm. A5052 aluminum.

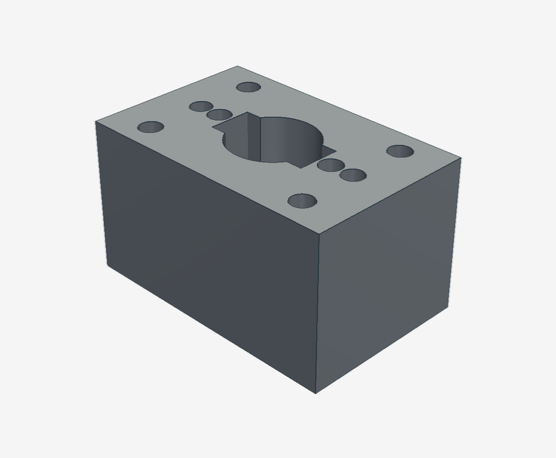

Parallel-Gripper Body
2-jaw gripper base: central guide bore + dowel & mounting-hole pattern. 50 × 32 × 28 mm. 7075 aluminum.
Also in the library: dowel & gauge pins, press-fit bushings, hex standoffs, set screws & knurled nuts, U-channels, pocketed & bolt-circle plates, toe/strap clamps, and gripper bodies — 30+ parametric part families spanning Ø3 mm Swiss-turned parts to 90 mm fixtures.
